R452A Opteon™ XP44

R-452A (Opteon™ XP44)

Lower GWP (2140) A1 safety class alternative to R-404A, R-507A for transport and low temperature hermetic compressor refrigeration applications.

Features and Benefits

  • A1 (non-flammable) safety class – Ideal retrofit candidate for higher GWP refrigerants in transport and low temperature hermetic compressor refrigeration applications.
  • 45% lower GWP than R-404A –More sustainable and compliant with F-Gas legislation.
  • Similar compressor discharge temperatures to R-404A – Ideal for applications where compressor discharge temperatures are critical.
  • Approved by many equipment manufacturers – Large choice of equipment available.

Packaging and Supply

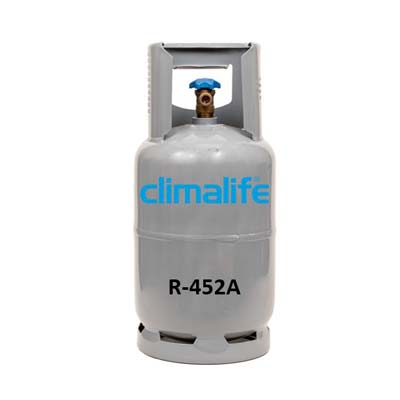

  • Climalife supply R-452A in 10kg or 53kg returnable cylinders.
  • Conforms to AHRI 700-2016 specifications.

Why Choose Climalife?

Climalife are a key player in the distribution of refrigerants and other climate control products, with a nationwide distribution network and product knowledge that is second to none.

How does R-452A compare to R-404A?

R-452A has a similar performance to R‑404A and is especially suited to cases where the compressor discharge temperature is a critical operating parameter e.g. transport refrigeration and some low temperature applications using hermetic compressors.

Full theoretical performance comparisons at customer specified conditions are available from Climalife on request.

Properties

Composition



HFC-32/HFC-125/R-1234yf - 11/59/30% by mass

Chemical Formula



CH2F2/CHF2CF3/CF3CF=CH2

Molecular Mass

103.51

Boiling Point (at 1 Atmosphere)

-46.9°C

Dew Point (at 1 Atmosphere)

-43.1°C

Saturated Liquid Density at 25°C

1125.5 kg/m³

Saturated Vapour Density at 1.013bar

5.728 kg/m³

Saturated Liquid Pressure at 25°C

13.111 bar

Saturated Liquid Pressure at 50°C

24.017 bar

Critical Temperature

75.0°C

Critical Pressure

40.144 bar

Critical Density

506.7 kg/m³

Critical Volume

0.00197 m³/kg

Latent Heat of vapourisation at 1.013bar

195.8 kJ/kg

Thermal Conductivity of Liquid at 25°C

66.9 mW/(m.K)

Thermal Conductivity of Vapour at 25°C & 1.013bar

13.8 mW/(m.K)

Surface tension at 25°C

4.73 mN/m

Viscosity of Liquid at 25°C

0.135 mPa.s

Viscosity of Vapour at 25°C & 1.013bar

0.013 mPa.s

Specific heat of liquid at 25°C

1.471 kJ/(kg.K)

Specific heat of vapour at 25°C and 1.013bar

0.8347 kJ/(kg.K)

Cp/Cv ratio at 25° and 1.013 bar

1.117

Lower Fammability Limit (LFL) in air (EN 378)

None

Flash Point

None

ISO 817 / ASHRAE 34 Safety Classification

A1

PED Fluid Group

2

Ozone Depletion Potential (ODP)

0

Global Warming Potential (GWP) IPCC AR4/IPCC AR5

2140/1945
